Контроллеры потока газа
| Наименование | Фото |
Поставщик
|
Точность
|
Повторяемость
|
Максимальное давление
|
Откалиброван для газов
|
Интерфейс
|
Диапазон напряжений (VDC), В
|
|
|---|---|---|---|---|---|---|---|---|---|
| SFC5500-200slm | Sensirion AG | not defined | not defined | 10 bar | Air, N2, O2, H2, He, CH4, N2O, Ar, CO2 | digital(RS485, IO-Link, DeviceNet) | 14.0 to 26.0 VDC | ||
| SFC5500-10slm | Sensirion AG | not defined | not defined | 10 bar | Air, N2, O2, H2, He, CH4, N2O, Ar, CO2 | digital(RS485, IO-Link, DeviceNet) | 14.0 to 26.0 VDC | ||

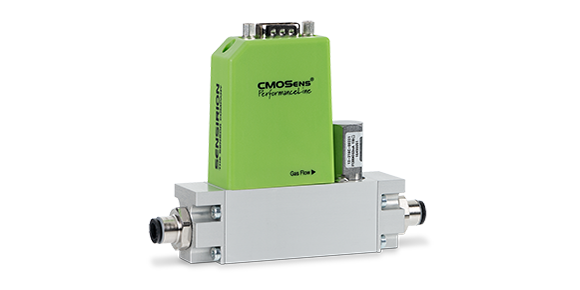

| SFC5500-0.5slm | Sensirion AG | 0.10 | 0.01 | 10 bar | Air, N2, O2, H2, He, CH4, N2O, Ar, CO2 | digital(RS485, IO-Link, DeviceNet) | 14.0 to 26.0 VDC | ||
| SFM5300_0.1bar | Sensirion AG | 0.2% FS | 0.02% FS | 10 bar | Air/N2, H2, O2, He, Ar, CO2 | digital (RS485 & IO-Link) | 14.0 to 26.0 VDC | ||

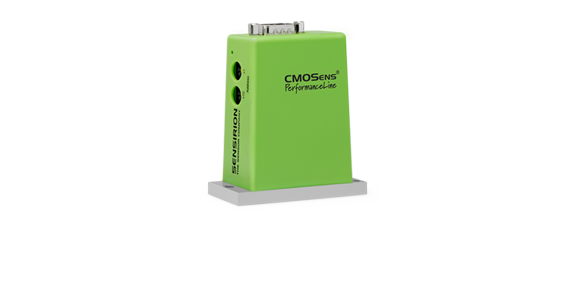

| SFC5300_2bar | Sensirion AG | 0.2% FS | 0.02% FS | 10 bar | Air/N2, H2, O2, He, Ar, CO2 | digital (RS485 & IO-Link) | 14.0 to 26.0 VDC | ||
| SFM5400_1bar | Sensirion AG | 0.1% FS | 0.02% FS | 10 bar | Air/N2, H2, O2, He, Ar, CO2 | digital(RS485, IO-Link, DeviceNet) and analog (0 to 5 VDC, 0 tp 10 VDC or 4 to 20 mA) | 14.0 to 26.0 VDC | ||

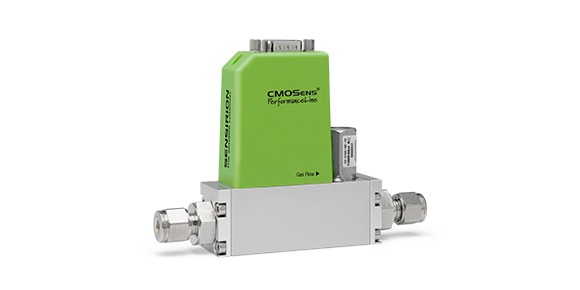

| SFM5400_0.1bar | Sensirion AG | 0.08% FS | 0.01% FS | 10 bar | Air/N2, H2, O2, He, Ar, CO2 | digital(RS485, IO-Link, DeviceNet) and analog (0 to 5 VDC, 0 tp 10 VDC or 4 to 20 mA) | 14.0 to 26.0 VDC | ||
| SFC5400_3bar | Sensirion AG | 0.1% FS | 0.02% FS | 10 bar | Air/N2, H2, O2, He, Ar, CO2 | digital(RS485, IO-Link, DeviceNet) and analog (0 to 5 VDC, 0 tp 10 VDC or 4 to 20 mA) | 14.0 to 26.0 VDC | ||
| SFC5400_2bar | Sensirion AG | 0.08% FS | 0.01% FS | 10 bar | Air/N2, H2, O2, He, Ar, CO2 | digital(RS485, IO-Link, DeviceNet) and analog (0 to 5 VDC, 0 tp 10 VDC or 4 to 20 mA) | 14.0 to 26.0 VDC |
