Драйверы
| Наименование | Фото |
Поставщик
|
Тип устройства
|
Напряжение затвор-исток, макс., В
|
Выходной ток, мА
|
Тип Канала
|
Блокировка при пониженном напряжении
|
Ток затвора, А
|
Минимальное рабочее напряжение (В)
|
Максимальное рабочее напряжение (В)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|

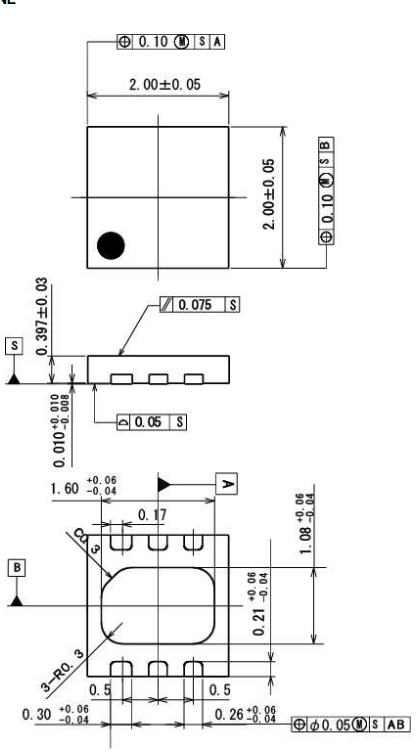

| NJW4832 | New Japan Radio Corporation | High Side Switches/ Low Side Switches | 40 | - | 1 | - | 0.2 | - | - | ||
| NJW4830 | New Japan Radio Corporation | High Side Switches/ Low Side Switches | 40 | - | 1 | - | 0.5 | - | - | ||

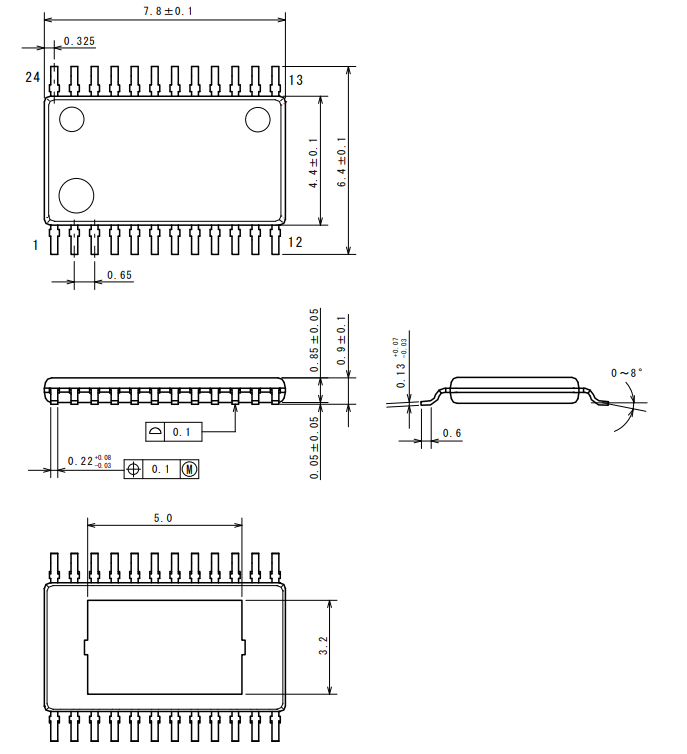

| NJW4829 | New Japan Radio Corporation | High Side Switches/ Low Side Switches | 40 | - | 8 | Yes | 0.3 | - | - | ||
| NJW4828-B | New Japan Radio Corporation | High Side Switches/ Low Side Switches | - | - | 8 | Yes(POR) | 0.3 | - | - | ||
| NJW4822 | New Japan Radio Corporation | High Side Switches/ Low Side Switches | 40 | - | 1 | - | 0.2 | - | - | ||
| NJW4820 | New Japan Radio Corporation | High Side Switches/ Low Side Switches | 40 | - | 1 | - | 0.5 | - | - | ||
| NJW4814 | New Japan Radio Corporation | Half/Full Bridge Drivers | - | ± 0.3 | 4(Half) | Yes | - | 2.7(VDD_SW) 7(VDD_HB) | 5.5(VDD_SW) 35(VDD_HB) | ||
| NJW4813 | New Japan Radio Corporation | Half/Full Bridge Drivers | - | +0.28/-0.25 | 2(Half) | Yes | - | 2.7(VDD_SW) 8(VDD_HB) | 5.5(VDD_SW) 35(VDD_HB) | ||
| NJW4810A | New Japan Radio Corporation | Half/Full Bridge Drivers | - | ± 1 | 2(Half) | Yes | - | 8 | 40 | ||
| NJW4801 | New Japan Radio Corporation | Half/Full Bridge Drivers | - | ±0.45 | 1(Half) | Yes | - | 8 | 35 | ||

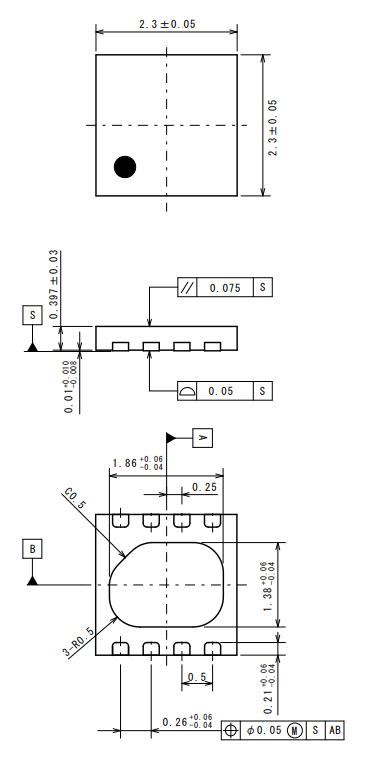

| NJU7386A | New Japan Radio Corporation | Half/Full Bridge Drivers | - | 1.7A(VDD=5V) | 2(Half) | Yes | - | 1.8 | 5.5 | ||

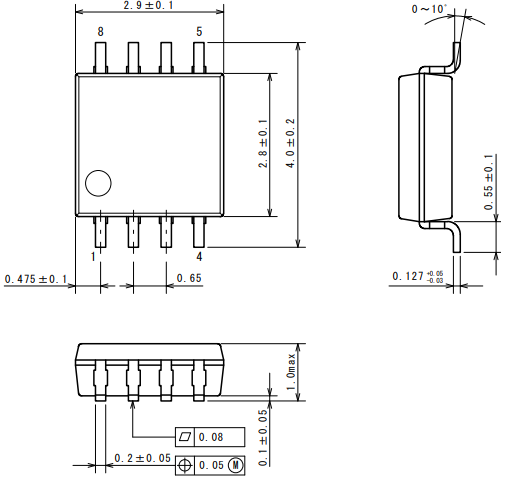

| NJU7386 | New Japan Radio Corporation | Half/Full Bridge Drivers | - | 1.5A(VDD=5V) | 2(Half) | Yes | - | 1.8 | 5.5 | ||

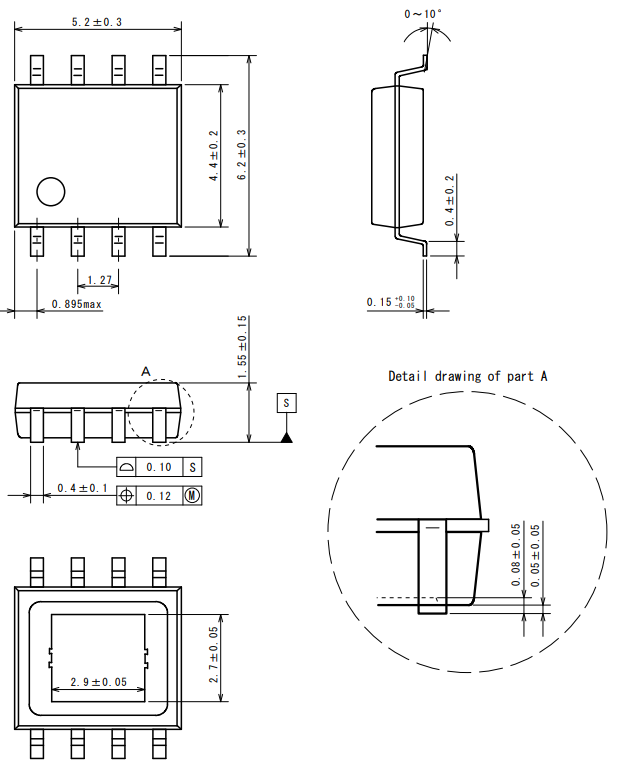

| NJW4860 | New Japan Radio Corporation | Gate Drivers | - | ±1 | 2 | Yes | - | 4 | 20 | ||
| NJW4841 | New Japan Radio Corporation | Gate Drivers | - | ±2 | 1 | Yes | - | 4 | 20 | ||
| NJW4840 | New Japan Radio Corporation | Gate Drivers | - | ±4 | 1 | Yes | - | 8 | 20 |
